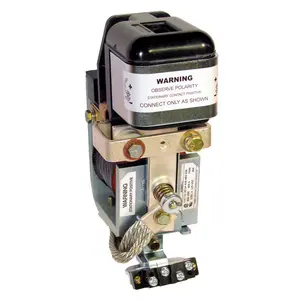

PC&S Contactor Coil HC14429464544
The PC&S contactor coil is UL recognized and CSA certified, with permanent magnet (polarized) arc chutes. The main contact options include SPNO, SPDT, and Series Field Reversal, with two million mechanical operations. With front access for serviceability and silver alloy main contact tips, these work for AC or DC operation.
Learn more in our product datasheet:
Product Specifications
- Arc chute polarity: Positive
- Auxiliary Contacts: 2 NO & 2 NC
- Catalog Number: HC14429464544
- DC Coil Voltage: 125
- Mounting Method: Insulated mounting sheet (1/32” thick) provided
- Operating Temperature Range: Celcius 20
- Series: 264
- Type: Definite Purpose
Dimensions
- Depth: 5.687 in
- Height: 9.03 in
- Weight: 5.7 lb
- Width: 4.19 in
Electrical Ratings
- Amperage Rating: 400 A
- DC Coil Voltage: 125
- Operating Voltage: 600
- Resistance: 507
Operational
- Operating Temperature Range: Celcius 20
Configuration
- Auxiliary Contacts: 2 NO & 2 NC
- Mounting Method: Insulated mounting sheet (1/32” thick) provided
