GracePoint Voltage Indicator R-3MT-VI-KIT

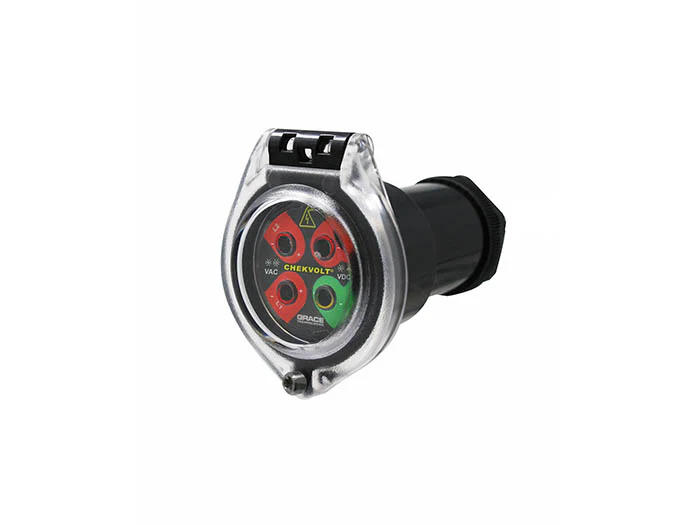

The ChekVolt is a compact Permanent Electrical Safety Device (PESD) that features voltmeter-compatible test points and redundant LED voltage presence indicators. The device is installed through a single 30mm knockout and includes lead wires, making installation quick and simple.
Download the specification sheet here:
Component Details
- Part Number: R-3MT-VI-KIT (Includes cap, horizontal and vertical labels)
Electrical Specifications
- Voltage IndicatorFlashing LEDs
- Voltage TypeAC/DC
- Operational Voltage Range20-1000VAC, 50/60/400Hz, 20-1000VDC
- Storage Temperature Range-45°C to +85°C
- Operational Temperature Range-40°C to +75°C
- Voltage Category RatingsCAT III @ 1000V, CAT IV @ 600V
Mechanical Specifications
- Installation30mm Pushbutton hole
- OrientationHorizontal or Vertical (both labels included)
- Environmental RatingsType 4, 4X, 12, 13, IP66, IP69
Commercial Data
- Country of OriginUS
- Schedule B Code8531.20.0040
Compliance
- Underwriters Laboratories Inc.
- E311256
- European Conformity
- INGR0516-A-00
- SS0010-1122-A-CE
- RoHS
- Restriction of Hazardous Substances
- SS0019-1122-A-RH ipsum dolor set amit.
