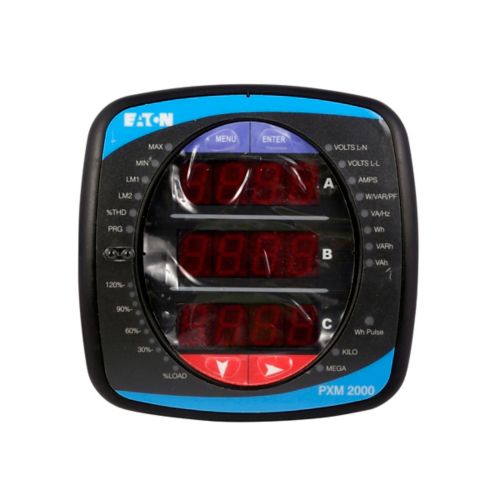

EATON Power Xpert Meter 2260
Energy and Power Quality metering enables facility managers and energy managers to better understand a resource critical to the operation of modern enterprises, electricity.Â
The Eaton Xpert Meter 2000, has 512 MB with integral display, 60 Hz, 5A secondary, 90-265 Vac/dc, 2 relay outputs/2 status inputs, and Gateway card. Learn more by downloading the specification sheet:Â
Product Information
- Catalog Number:Â PXM2260MA65115
- UPC:Â 786685349237
- Product Length/Depth: 4.85 in
- Product Height: 4.85 in
- Product Width: 3.96 in
- Product Weight: 2 lb
- Warranty: 1 year
- Compliances: CE Marked
- Certifications: IEC 60687
- ANSI/IEEE Std C12.20
- cUL 22Cz
- ANSI/IEEE Std C62.41
Product Specifications
- Type =Â Power quality meter (with integral display)
- Memory = 512 MB
- Power supply voltage = 90-265 Vac/dc
- Frequency rating = 60 Hz
- %Thd – current and voltage = To 40th
- Waveform capture sampling rate = 400/cycle
- Impulse transient capture = None
- ANSI % revenue accuracy = C12.20 (0.2)
- Current sensor input = 5A
Instrumentation
-
- Watts
- Watt Demand
- View current & voltage phasors on display
- Va demand
- Power-Real, Reactive, Apparent
- Wh –Positive & Negative
- Per Phase Power Factor
- Demand Metering
- Current & Voltage – Per Phase
- Neutral Current
Logging
-
- Time/date stamp
- Email on alarm
- Event Log
- Data Logging
I/O Capability
-
- Analog Input/Output
- Prog. Pulse Output –Wh, Varh, Vah
- Voltage Disturbance Trigger
- Digital Input/Output
- Sub Cycle- Sag/ Swell
Communications
-
- 10 / 100 RJ – 45 Ethernet Port
- BACnet/IP
- Graphic Display (Local – Remote)
- Modbus RTU (RS – 485)
- Modbus TCP
Modifications
- Modification 1: 2 relay outputs, 2 status inputs
- Modification 2 = Gateway card
